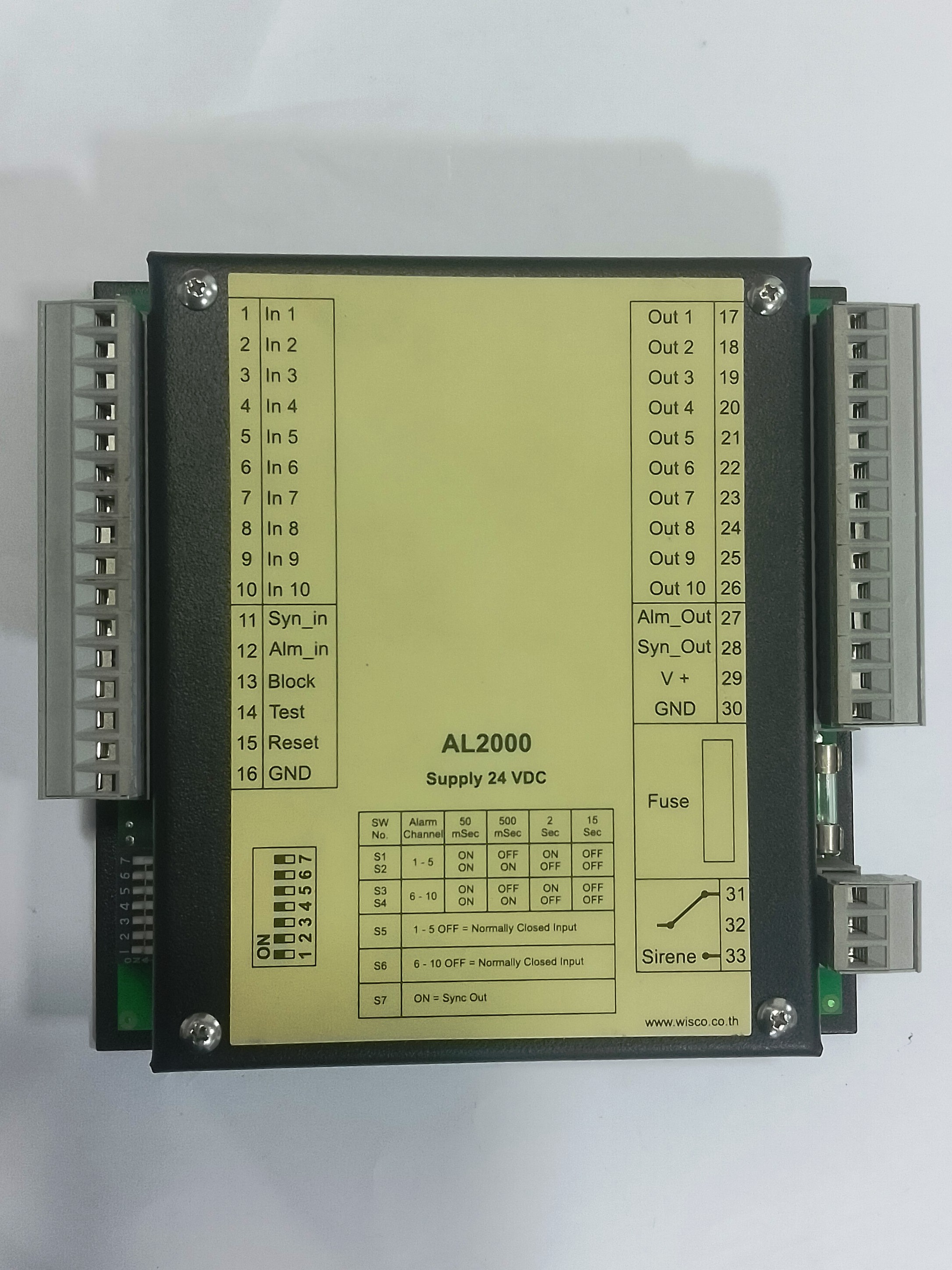

AL2000 ALARM ANNUNCIATOR WISCO

Features

- 10 Channels Input

- LED Display

- Siren Relay Output

- First Alarm Detect

- Expandable Input Channel

SKU: CAB2-T1-S0030.

Product Details

- 10 Channels Input

- LED Display

- Siren Relay Output

- First Alarm Detect

- Expandable Input Channel

More Information

Alarm Input

Number of channel:

10 Channels

Alarm Input:

Programmable NO/NC Contact

Alarm Input Delay:

Programmable 50 msec, 500 msec, 2 sec, 15 sec

Lamp Flash Ferquency:

Slow Flash 0.8 Hz, Quick Flash 8 Hz

Output

Number of channel:

10 Channels

Output type:

NPN (Opto Isolated)

Relay Output

Number of channel:

1 Channels

Relay Type:

N.O. (Siren)

Contact Rating:

500 mA @ 120 VAC

Power Requirements

Power Supply:

12 VDC ± 20 %

24 VDC ± 20 %

Power Consumption

Standby:

1.3 A

Environmental Limits

Operating Temperature:

0 to 55 °C

Operating Humidity:

5 to 95 %RH

Storage Temperature:

0 to 70 °C

Physical Characteristics

Physical Characteristics

Dimension:

W144 x H144 x D43 mm.

Mounting:

Panel Flash Mounting

Wiring:

Screw Terminals

Weight:

0.5 Kg
